LMZB6-10 10KV annealed ring core epoxy resin bus type current transformer
Interview
LMZB6-10 10KV annealed ring core epoxy resin bus type current transformer
Application
LMZB6-10 10KV annealed ring core epoxy resin bus type current transformer is bus type and epoxy resin insulated. It is designed for current, power measurement and relay protection in a power system with rated frequency 50Hz and rated voltage 10kV.
LMZB6-10 10KV annealed ring core epoxy resin bus type current transformer is bus type and totally enclosed, and has annealed ring core. The secondary windings and the mounting are casted in epoxy resin. The flange is provided with 4 holes for mounting.
LMZB6-10 10KV annealed ring core epoxy resin bus type current transformer conforms to IEC60044-1 and GB1208-2006 standard.

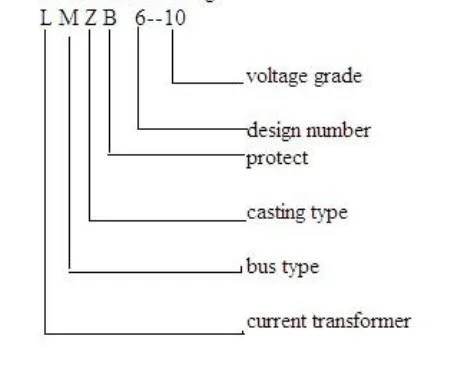

Model and Meaning
Main Technical Parameter
1. Rated insulation level: 12/42/75 kV;
2. The load power factor: COS $= 0. 8 (lag);
3. Rated secondary current: 5 A
4. The product standard: GB1208-2006 and IEC 60044-1
5. Other technical parameters see table follow:
Type | Rated primary current(A) | Rated second current(A) | Rated secondary current(A) | Accuracy classes | Rated secondary burden(A) | Accuracy limit factor for 10P | |
Class 0.5 | Class 10P | ||||||
LMZB6-10 | 10 | 1500 | 5 | 0.5/10P 10P/10P | 50 | 50 | 15 |
2000 | |||||||
3000 | 60 | 60 | |||||
4000 | |||||||
Overall and Installation Dimension
